Work according to defined processes

• NPI/NPD
• Projects
• Quality
• Documentation

Always seeking the most effective solution in regards to
Quality-Delivery-Cost to execute projects  without  compromising safety and quality.

Team is used to work with classification societies,
demanding offshore projects and nuclear power plant projects.

Our technology team is ready to serve

• Engineering and design according to customer’s specifications
• FEM-analyses and calculations.
• 3^rd party design and/or type approvals.
• Development of manufacturability.
• Collaboration with professional partners like institutes etc...

Engineering

Mechanical   •     Automation    •    User & Service Manuals

Surface cleaning by automatic descaling machine.

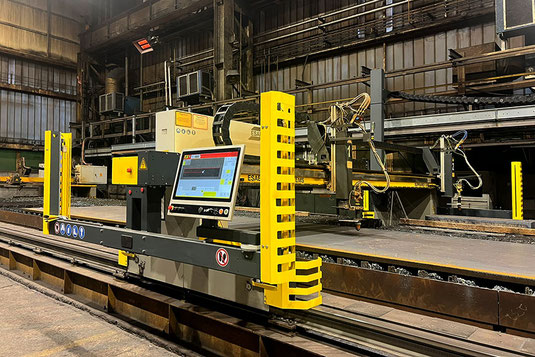

Flame cutting

• DNC machines
• Working area 4.000 x 12.000 mm
• Cutting thickness 5 - 200 mm

Plasma cutting

• 3D swivelling head
• Working area 3.000 x 18.000 mm
• Cutting thickness 1 - 30 mm

Bending

Press bending

Up to 150 tons

Length 3 meters

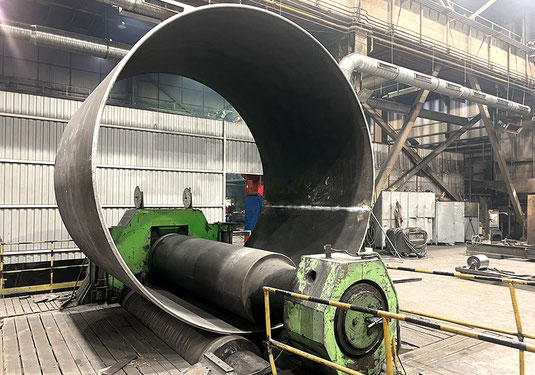

Roll bending

Up to 150 tons

Rolling width 2.000 mm

Maximum plate thickness 110 mm

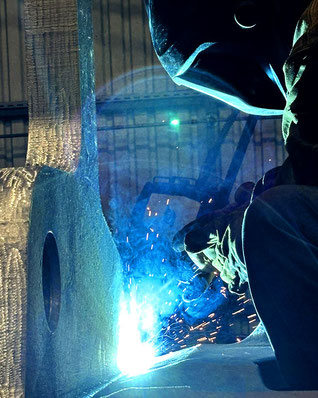

Welding methods

MAG  •     SAW   •    TIG   •    semi-automatic

Welding excellence

50+ certified welders with EN ISO 9616-1 certificate

Robot Ø 2.000 mm x 7.000 mm, max. weight 4000 kg

Robot Ø 4.000 – 7.000 mm, max. weight 3.000 kg

Material: S235, S355, S690, S960

Quality

EN 3834-2, certified by Det Norske Veritas

Qualifications

EN ISO 3834-2 (DNV), EN 1090-2,  (SLV)

EN ISO 15085-2 (SLV) certified from DVS / GSI SLV

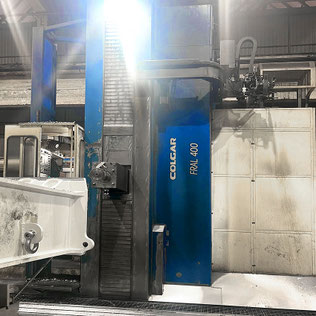

Horizontal milling-boring machines

Conventional 6.000 mm x 3.200 mm x 2.000 mm

CNC 30.000 mm x 4.500 mm x 1300 mm

Max. work piece weight 40 t

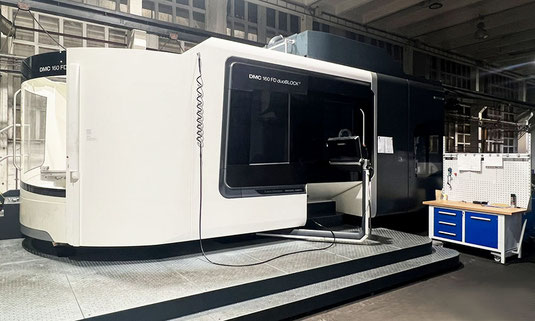

CNC Machining centre

1.500 mm x 1.500 mm x 1.500 mm

Roll grinding

Ø up to 630 mm x 3200 mm

Max. lifting capacity 80 tons

State of the art surface treatment.

Two independent 100 m long surface treatment lines.

20 m long        8 m wide        6 m high cabinets

Coated parts always cleaned prior to surface treatment.

Cleaning of parts by environmentally sound, biologically degradable, phosphate free chemicals, or conventional iron phosphate.

Effective consumption and accurate mix of paints handled by

12 pieces two-component mixing units.

Grid blasting according to EN ISO 8501.

Minimizing emissions, we apply water based, low-solvent type of liquid paints, following EN ISO 12944 standard

Quality tools in use

APQP          PPAP          FMEA          8D

Testing of parts or welded structures

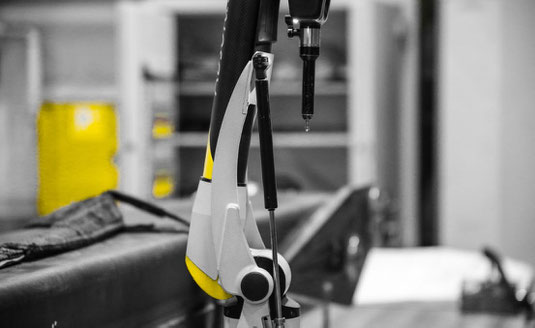

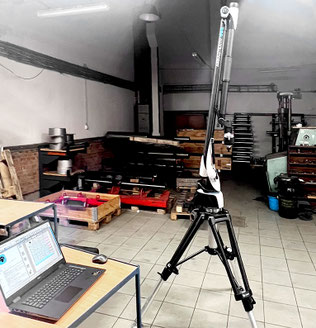

3D dimensional measuring

Visual test

Magnetic particle / penetration test

Ultrasonic test
